We’ve developed more powerful (1KW) LDFZ furnace compared to the initial model in 2011, and started suppling them to our customers in the world since February 2016.

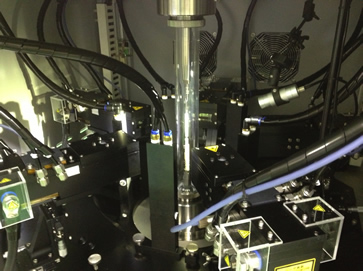

Laser Floating Zone Furnace
Feature
We, Crystal Systems Corporation, have started suppling new model of “Laser-diode floating zone (LDFZ) furnace”. The new model is total 1KW in power(the first model in 2011 was 350W) and it makes possible to grow larger crystal under stable growing conditions.
Specifications
Laser operational mode：CW(continuous wave)
Max power(standard)：1000W (200W x 5 laser diode units) ※
Center wave length：800 – 1100nm
Laser oscillation angle：0～30 degrees (changeable)
Cooling：Water-cooled by 2 re-circulating chillers
Sealing：O-ring seal
Pressure：0.95 MPa
Vacuum：6.7 x 10-3 Pa
Crystal length：150 mm
Growth speed
slow moveing：0.01 – 300 mm / hour
fast moving：1 – 150mm / minute
slow moveing：0.01 – 300 mm / hour
fast moving：1 – 150mm / minute
Rotation speed：3 – 100 rpm
Control system
LabVIEW (OS Windows 10),
manual controll with Hand-Controll-Box
LabVIEW (OS Windows 10),
manual controll with Hand-Controll-Box
Monitoring：Monitor camera , LCD monitor
Atmospheric gas
Ar：5 L/min ,
O2：500 cc/min ,
Air：10 L/min
Ar：5 L/min ,
O2：500 cc/min ,
Air：10 L/min
Power
3 phases / 200V / 30A
1 phases / 200V / 20A
1 phases / 200V / 20A
3 phases / 200V / 30A
1 phases / 200V / 20A
1 phases / 200V / 20A
※ Option：1000W / 500W / 300W per each laser diode unit(LDU). Max power：5000W ( 1000W × 5 laser diode units )
